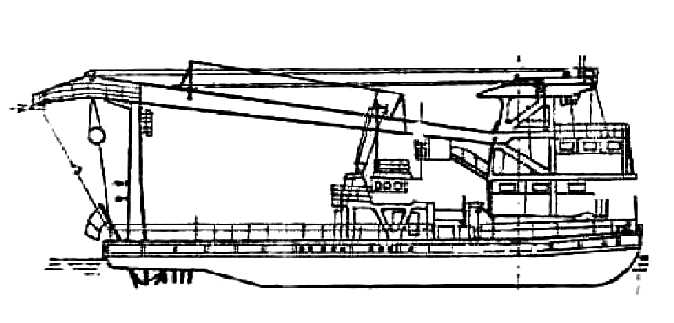

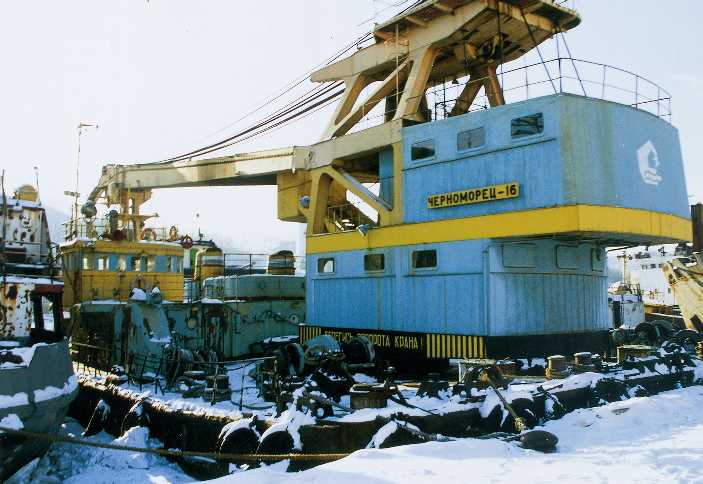

ALL-ROUND SELF-PROPELLED FLOATING WHIRLEY CRANE AT HOISTING CAPACITY OF 1000 T OF "CHERNOMORETS" TYPE
In maritime construction is destined for handling operations and building and assembly jobs at not heavy sea and strong wind.
When equipped with a clam-shell, can excavate light and heavy soils.
On deck is permitted shipment of cargo at weight of up to 300 t.
Working area - harbour waters, open roads with moving off from the place of refuge up to 200 miles.
The crane can make distant maritime passages with help of a towboat in heavy sea at speed of 3 knots.
The crane allows combined work of the main and auxiliary hoist with cargo canting.
Overall length of the crane with boom "for cruise" 56,86 m Maximal length of a body 40,7 m Overall height of the crane |
with boom "for cruise" 14,0 m Maximal width of a body 40,7 m Depth 3,4 m Draft, loaded 2,0 m Speed with cargo of 300 t 6,0 knots |
