"HYDROTECHNIK"

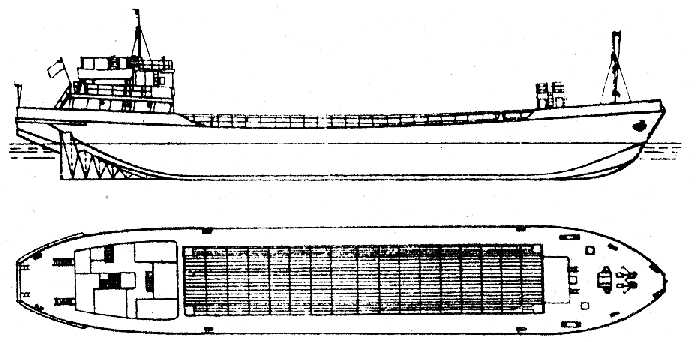

A maritime dumb barge with open hold, is destined for shipment of produce from reinforced concrete, stone and sand for hydrotechnical projects.
Stability of the barge on towboat's track is provided by stabilizers.
Navigating zone - open seas with moving off from the place of refuge up to 200 miles, with permissible distance between two places of refuge up to 400 miles, and also closed seas.
According to the ice-class is permitted sailing after an icebreaker in small particles of open pack ice in light ice conditions.
Staff number for work in 3 shifts is 4 persons.

Overall length of the vessel, m 56,86
Extreme breadth of the vessel, m 9,5
Depth, m 4,75
Mean draft, m:
empty 0,95
loaded 3,31
Displacement, t:
empty 344,8
loaded with cargo of 1000 t 1968,6
|
Gross tonnage, register t 657,7
Hold length, m 31
Hold breadth, m 6
Autonomy, days 20
The barge can accept into its cargo space
the following cargoes, t
stone or sand, not less than 1000
bulk concrete, not less than 800
shelled concrete piles, not less than 400
|
|
