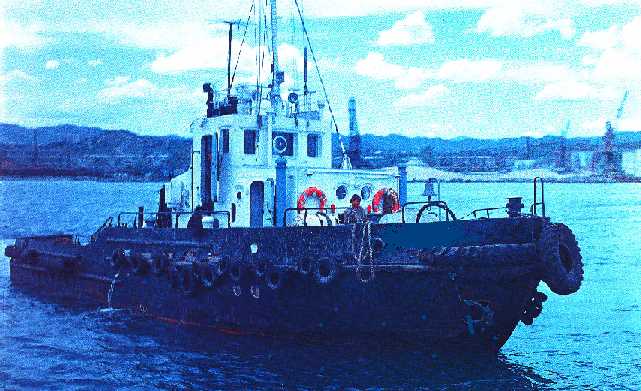

"IZYSKATYEL"

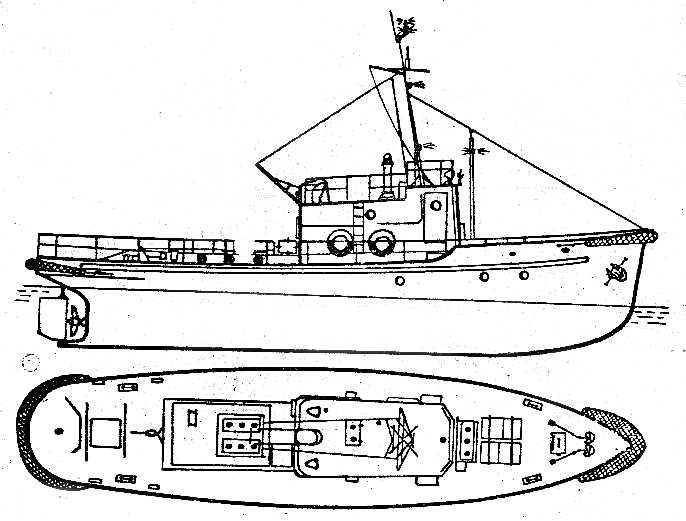

Single-deck single-screw maritime towboat with overhung stem and cruiser stern, deckhouse dislodged towards forebode and engine room at stern.
Is destined for towage of non-self-propelled vessels.
Navigating zone - coastal, offshore and port with moving off from port of refuge up to 20 miles.
Staff number for work in 3 shifts is 9 persons.

Overall length of a vessel, m 17,37
Overall width of a vessel, m 3,8
Depth, m 2,16
Draft, m:
loaded 1,67
empty 1,36
Displacement, t:
loaded 40,63
|
empty 35,98
Main engine:
diesel 3D6N-150(6CHNSP 15/18)
output power, HP 150
number 1
Capacity of fuel tanks, m3 3,02
Free run speed, knots 9,4
|
|
