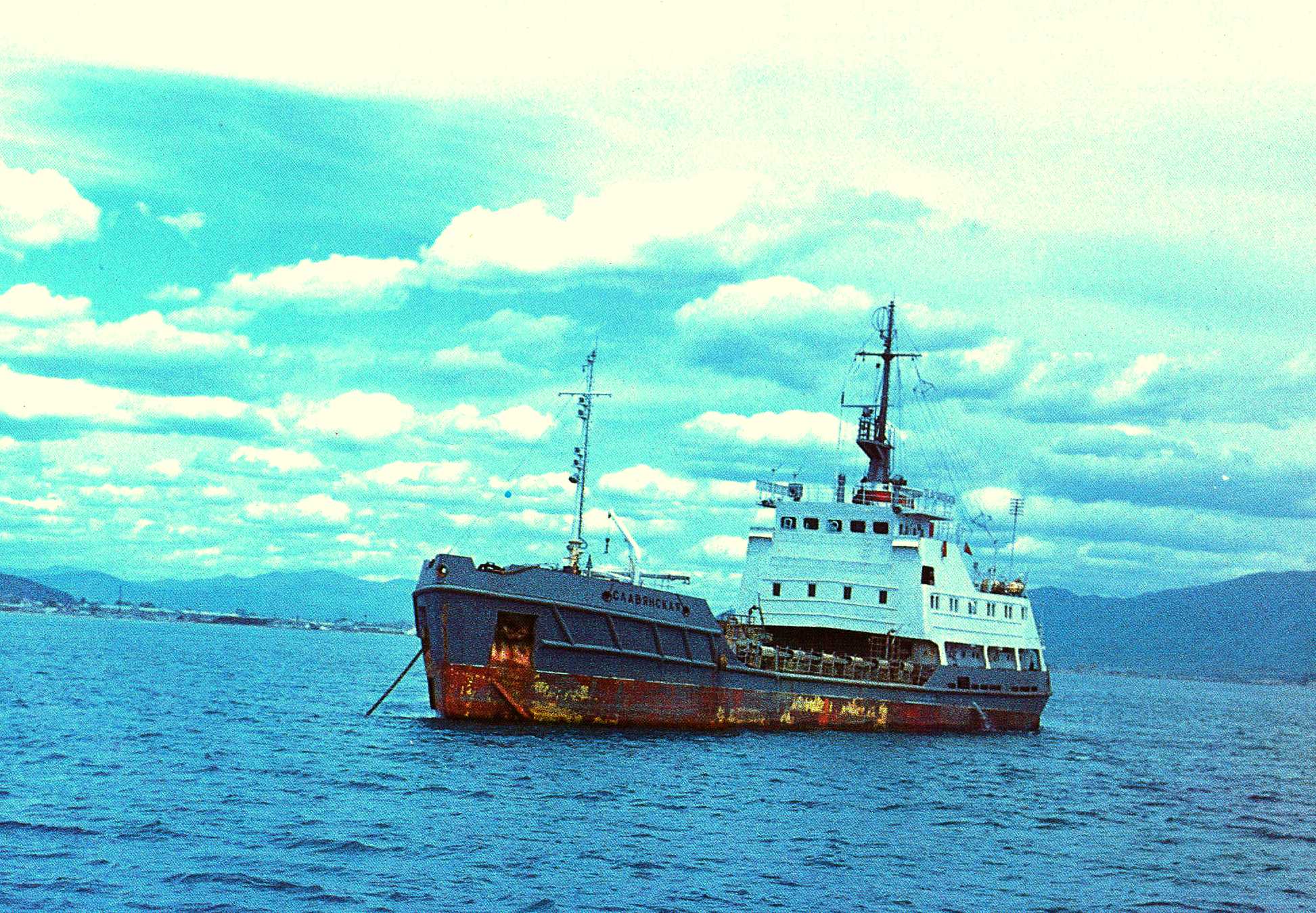

DIESEL SCOW "VLADIVOSTOKSKAYA"

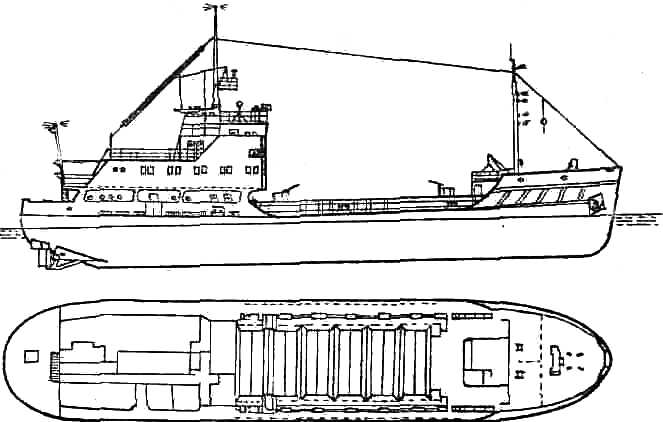

A self-propelled diesel-electrical manhole scow - single-decker with deck projection on the rostrum; with hold in the middle part, with discharge of soil through bottom outlets; with engine room located in bow; with three-floor deckhouse in bow and small deckhouse on the rostrum.
The vessel is destined for reception, shipment and discharge on underwater dumps soil, excavated by multi-scoop dredge ship of output from 400 to 750 m3/h and sailing in seas of Russia. Work zone - limited IIIrd (sailing of the loaded vessel within not more than 20 miles from the place of refuge).
Navigating zone - open seas with moving off from the place of refuge up to 200 miles, with permissible distance between two places of refuge up to 400 miles, and also closed seas; sailing after an icebreaker and self-dependent sailing in small particles of open pack ice in Baltic Sea, or other zones of similar ice conditions.
Staff number is 14 persons.

Overall length of a vessel, m 56,19
Length of a vessel
between perpendiculars, m 53,20
Width of a vessel
along design water-line, m 11,0
Depth, m 4,44
Mean draft, loaded, m 3,70
Displacement, loaded, t 1627,6
|
Tonnage, t 1000
Main engines:
diesel 8NV3-26A2
output power, HP 400
number 2
Total rated output of engines, m3/h 1070
Capacity of fuel tanks, m3 128,8
Speed, knots 9,0
|
|
